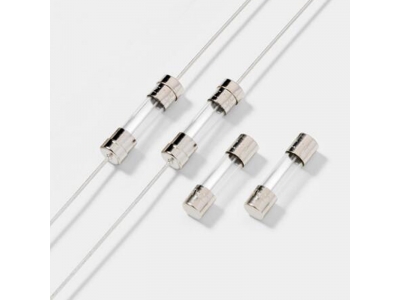

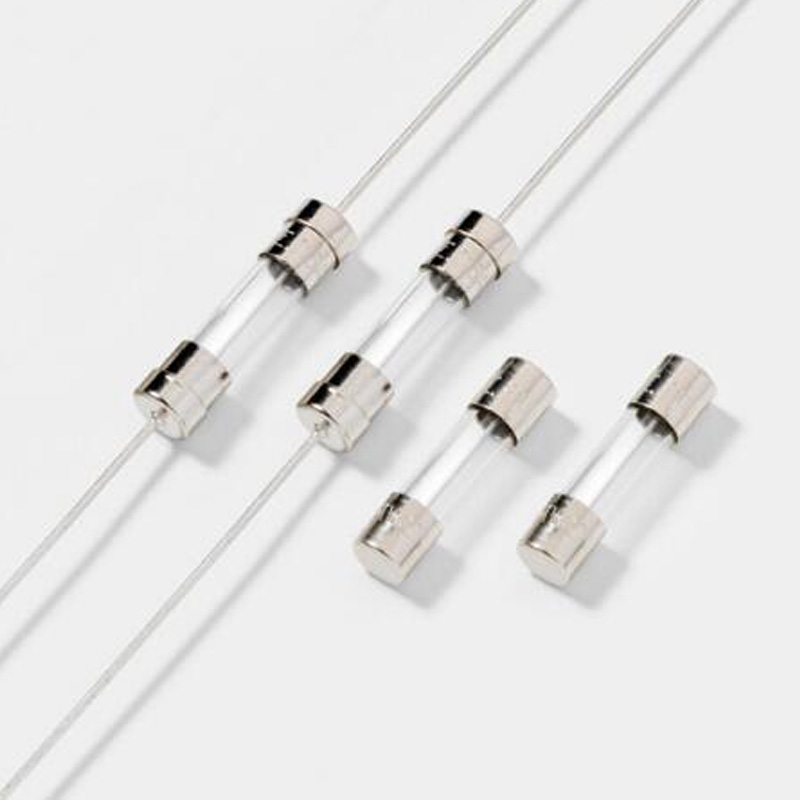

JFG6T玻璃保險管
JFG6T玻璃保險管

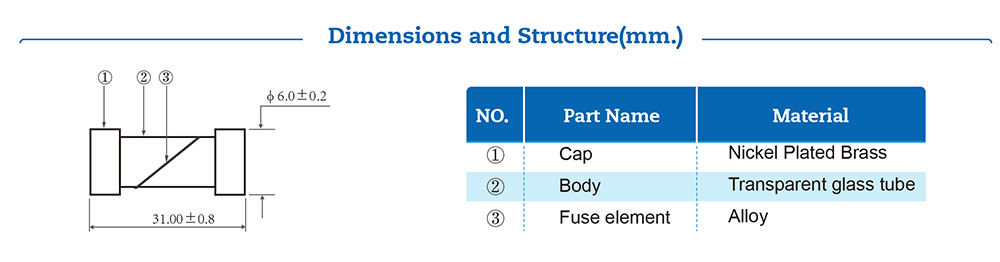

尺寸：6*30MM ;
耐壓值：250V;
額定電流：0.5A-30A;
類別：帶引腳/不帶引腳，慢熔;
溫控范圍：-55~+125℃;
保存溫度：10-60℃;
認證：安規(guī)UL認證;
適用范圍：保護家用電器、電子儀器、電源供應器、顯示器.
- 品牌： 集電通/JDTFUSE
- 分類： 玻璃保險管
- 最大電壓： 250V
- 額定電流： 0.1A-30A
JFG6T規(guī)格書
Part Number | Rate Current (A) | Max Voltage Rating (V) | Interrupting Rating | Nominal Melting I2t (A2sec) |
JFG6T0100N/L | 0.10 | 250V | 100A@250V | 0.11 |
JFG6T0500N/L | 0.50 | 0.49 | ||
JFG6T0630N/L | 0.63 | 1.10 | ||
JFG6T0750N/L | 0.75 | 1.54 | ||
JFG6T0800N/L | 0.80 | 1.96 | ||
JFG6T1100N/L | 1.00 | 4.84 | ||
JFG6T1125N/L | 1.25 | 6.76 | ||
JFG6T1150N/L | 1.50 | 26.01 | ||
JFG6T1160N/L | 1.60 | 28.62 | ||
JFG6T1200N/L | 2.00 | 30.25 | ||
JFG6T1250N/L | 2.50 | 47.61 | ||
JFG6T1300N/L | 3.00 | 121 | ||
JFG6T1315N/L | 3.15 | 132 | ||
JFG6T1350N/L | 3.50 | 182 | ||
JFG6T1400N/L | 4.00 | 324 | ||
JFG6T1500N/L | 5.00 | 361 | ||
JFG6T1600N/L | 6.00 | 462 | ||
JFG6T1630N/L | 6.30 | 496 | ||
JFG6T1800N/L | 8.00 | 676 | ||
JFG6T2100N/L | 10.0 | 1190 | ||
JFG6T2120N/L | 12.0 | 750A@250V | 1640 | |
JFG6T2150N/L | 15.0 | 2500 | ||
JFG6T2200N/L | 20.0 | 3249 | ||
JFG6T2250N/L | 25.0 | 7225 | ||
JFG6T2300N/L | 30.0 | 8081 |
