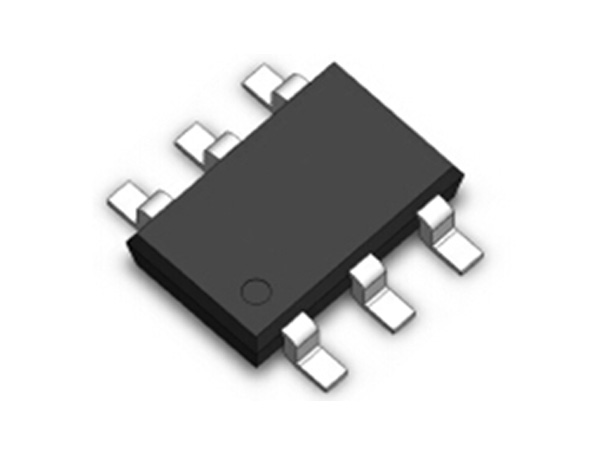

SOT-363封裝系列ESD保護器

Part No.VRWM.max (V)VBR.min(V)CJ .typ(pF)Ppp @8/20μs(W)Ipp @8/20μs(A)IR.max(μA)Contact(kV)ChannelInnerDiagramPackagePDFJET363-5V-5566010080.2±305SOT-363JET363-5V-UL4560.37550.5±254SOT-363 VRWM：Rever

品牌：集電通/JTDFUSE
分類： ESD保護器
最大電壓： --
額定電流： --

規格書

詳細參數

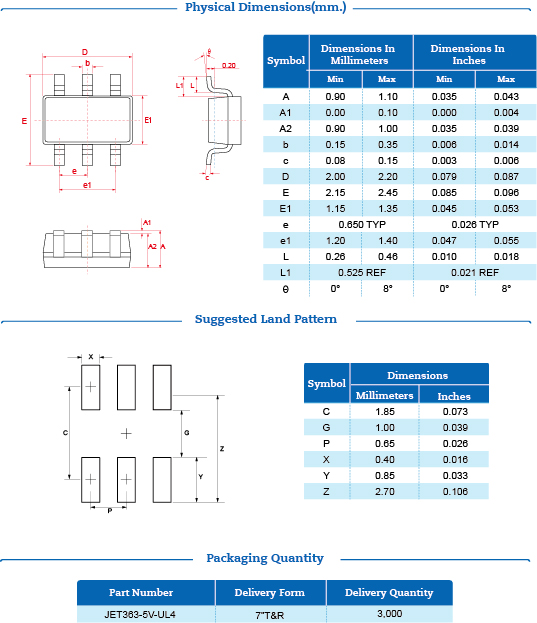

尺寸規格

保險絲

Part No.	VRWM .max (V)	VBR .min (V)	CJ .typ (pF)	Ppp @8/20μs (W)	Ipp @8/20μs (A)	IR .max (μA)	Contact (kV)	Channel	Inner Diagram	Package	PDF
JET363-5V-5	5	6	60	100	8	0.2	±30	5		SOT-363
JET363-5V-UL4	5	6	0.3	75	5	0.5	±25	4		SOT-363

VRWM：Reverse Working Voltage

VBR：Snap-Back Voltage

CJ：Junction Capacitance

Ppp：Peak Pulse Power

Ipp：Peak Pulse Current

IR：Reverse Leakage Current

Contact：IEC 61000-4-2;Contact Discharge

保險絲

標簽: ESD保護器 SOT363
